What is Audio Clipping / Distorting?

When audio coming in reaches its maximum level / amplitude (or close to) on sound meters or a Zoom H4n, as seen in the image below, then you’ve run out of headroom which will in most cases result in Audio Clipping. In other words, the audio is being crushed and will sound distorted. The signal coming is is too hot for the mixer or device to handle. Essentially the signal “cuts” or “clips” when the audio signal hits it’s maximum capacity. See Waveform images below.

What causes Audio Clipping / Distorting?


In short, an overloaded signal being sent from the amplifier to the audio mixer or recording device.

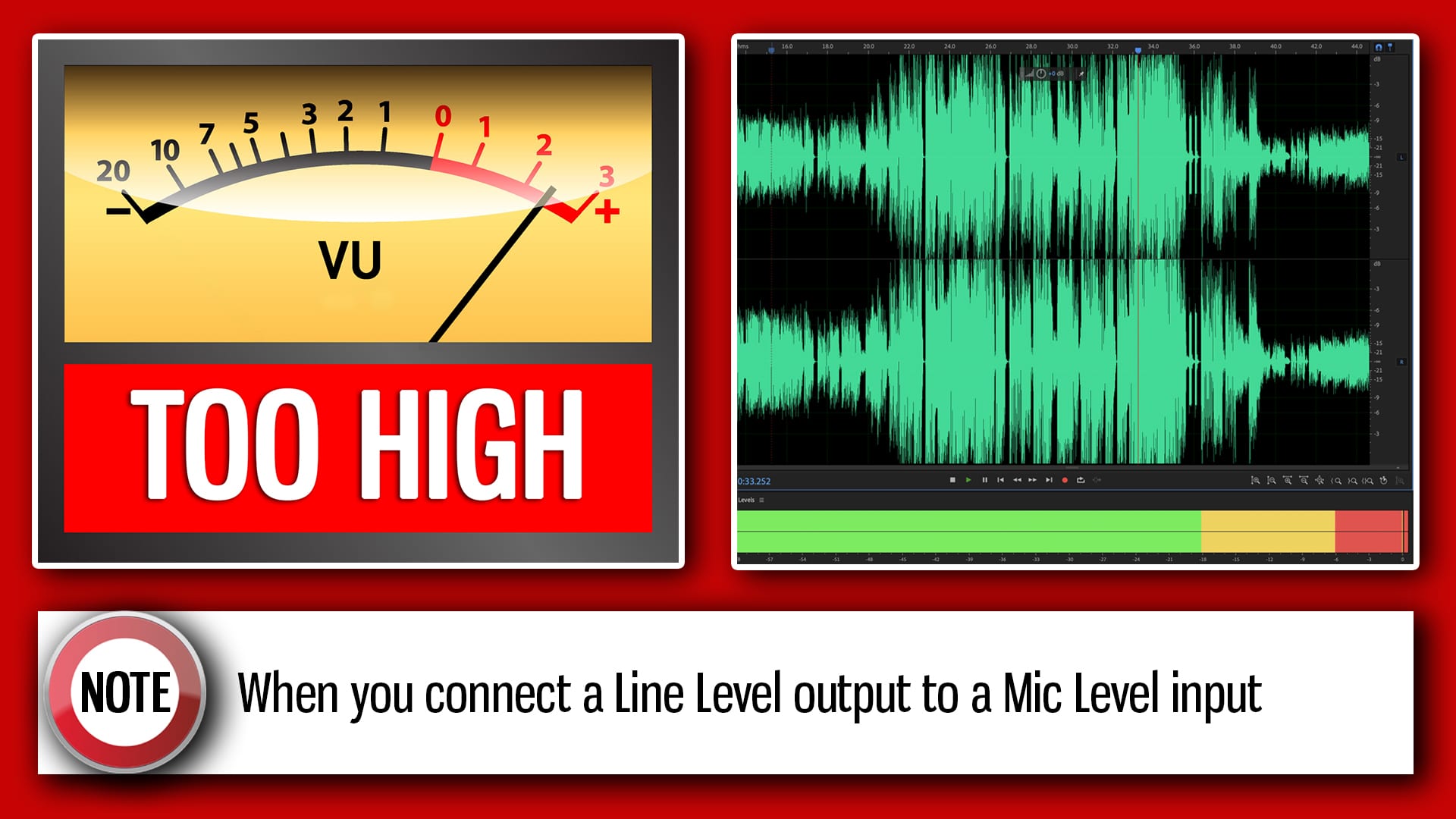

The Waveform images below show when and how the audio is too high and too low, both situations you don’t want to be in!

Zoom-h4n-levels-too-high-clipping

Zoom-h4n-levels-too-low

HOW TO FIX THIS

 ANSWER  With an Attenuator

Audio Attenuators essentially lower the volume / amplitude of audio and are defined in a number in decibels, This reduction in the wave amplitude really helps if you’ve connected a Line Level output to a Mic input as shown in this article.

By the way, Clipped Audio cannot be fixed completely in post. Small issues can be ‘fixed’ but even this is hit and miss. This best way I’ve found, along with many others I’ve shown this method to, is to prepare the audio setup before recording anything. It’s a really easy method and you can read the steps below on this.

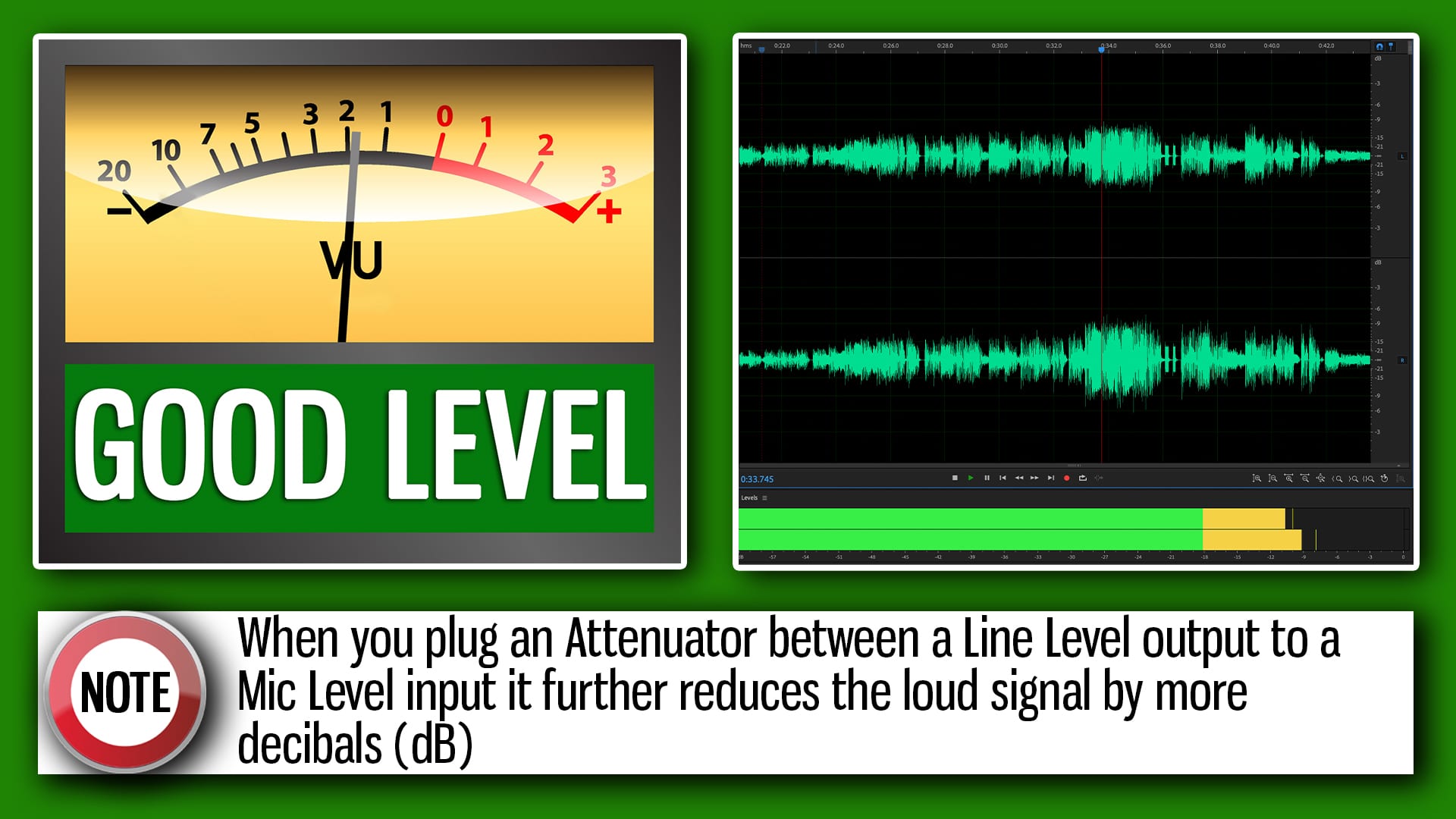

Below you will see what the waveform amplitude looks like when an Attenuator is connected to an XLR cable.

connect-zoom-h4n-to-mixer-good-level

IMPORTANT
The Zoom H4n only takes Mic Level inputs at the bottom and cannot take Line sources.

This is crucial as a Line Level cable uses greater voltage than a mic-level signal, around 1,000 times greater compared to a Microphone Level input which uses 0.010 volts. See images below. Please watch the video where Curtis Judd explains how to
Record Live Event Sound from a Mixing Board

line-and-mic-level

So, getting a Line Level TRS (or RCAs) to XLR cables and just plugging them into the Zoom H4n will give you clipping / overload issues. You need to attach things in front of the XLRs to avoid this. Those things are Attenuators as shown below.

Audio-Attenuators

You can use any of the two types of connectors (TRS or RCA) incase one is used up on the mixer. Then plug those into the Attenuators and the Zoom H4n.
Also, I have never experienced any difference in signal / sound quality when using either connectors.



STEPS FOR CONNECTING THE ZOOM H4N TO A MIXER
connect-h4n-to-mixer-trs-cable

How to Connect a Zoom H4n to a Mixer | 2020 3Cable 1: TRS to XLR cable

This Line Level 1/4″ TRS cable is needed to use the Aux Sends on the audio mixer

connect-h4n-to-mixer-rca-cable

How to Connect a Zoom H4n to a Mixer | 2020 3Cable 2: RCA to XLR cable

This Line Level RCA cable is needed to use the Tape Outs on the audio mixer

How to Connect a Zoom H4n to a Mixer | 2020 5

How to Connect a Zoom H4n to a Mixer | 2020 6-20 DB  Attenuators

These are needed to LOWER the volume / amplitude of audio and are defined in decibels

connect-h4n-to-mixer-trs-cable-attenuator-connect

How to Connect a Zoom H4n to a Mixer | 2020 7Fix Attenuators on TRS or RCA cable

This setup will now reduce the volume / amplitude of the audio recorded into the Zoom H4n

To read about how to Connect a Zoom H1 to a Mixer click here OR click on the image below

Connect-zoom-h1-to-mixer-link
How to Connect a Zoom H4n to a Mixer | 2020 8

How to Connect a Zoom H4n to a Mixer | 2020 9Cable 1: Insert the TRS cables into the Aux Sends of the Mixer

The audio level can be adjusted using the Master level of the Aux Send

connect-h4n-to-mixer-rca-cable-tape-out

How to Connect a Zoom H4n to a Mixer | 2020 9Cable 2: Insert the RCA cables into the Tape Output of the Mixer

As the Tape Out is a fixed output, the incoming audio level is adjusted on the Zoom H4n inputs

connect-h4n-to-mixer-adjust-aux-master

How to Connect a Zoom H4n to a Mixer | 2020 11Adjust the Aux Master

This is the Master volume control for the Aux Send

connect-h4n-to-mixer-trs-cable-zoom-h4n-inputs

How to Connect a Zoom H4n to a Mixer | 2020 12Insert the Cables with Attenuators into the Zoom H4n Inputs

Make sure cable Left and cable Right are in the correct inputs

connect-h4n-to-mixer-play-audio

How to Connect a Zoom H4n to a Mixer | 2020 13

Play Audio to record

Whether it’s a vinyl or CD

connect-h4n-to-mixer-adjust-record-levels

How to Connect a Zoom H4n to a Mixer | 2020 14

Check the Input levels on the Zoom H4n

Keep it as close to -6db so there is plenty of headroom

WATCH VIDEO BELOW

EQUIPMENT NEEDED

How to Connect a Zoom H4n to a Mixer | 2020 15

 NOTE

Please make sure you buy 2 X TRS to XLR cables and 2 X Whirlwind IMP Pad -20 DB (Attenuator).

EQUIPMENT NEEDED

How to Connect a Zoom H4n to a Mixer | 2020 16

 NOTE

Please make sure you buy 2 X RCA to XLR cables and 2 X Loops -20 DB (Attenuator). Some items are listed incorrectly.

Zoom H4n Pro

Jack to XLR Leads

RCA to XLR CableS

Loops -20dbAttenuator
